•No. of switching points:

•No. of switching circuits:

•Switching operation method:

•Applicable signal:

•Contact rating
      Contact method:
     Voltage:
     Current:
     Contact Resistance:


•Operating ambient temperature range:

•Operating ambient humidity range:

•Material:

•Color:

•External dimensions:

•Panel cutout:

•Mounting:

•Panel thickness:

•Weight:

6

2

Push button switching

D.C. voltage, current
(R.T.D. is not applicable)

contact slide
30V DC max.
100 mA DC max.
300 m Ohm max.

-10 + 50 °C

90 % RH max (no dew condensation)

PPO resin

Case: Munsell No.N-1 or compatible
Front Panel: Munseil No.N- 1 or compatible

H48 x W96 x Dl 18 (panel depth: 100mm)

H45xW92mm

Push-in Panel (one-touch mount)

1.0 ~ 4.0mm

Approx. 250g

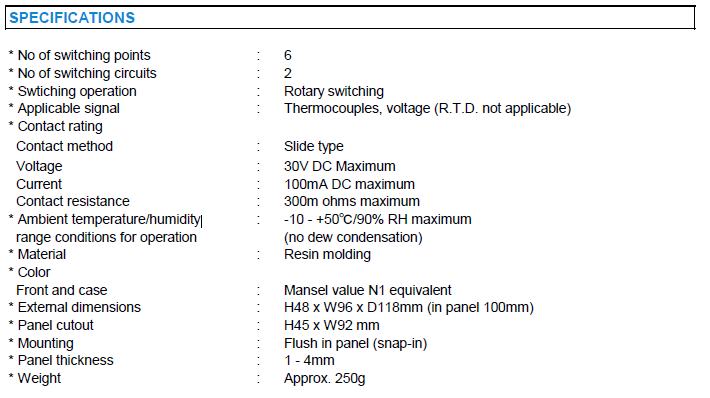

Specifications

DOWNLOAD COMPLETE PRODUCT SPECIFICATIONS IN PDF FORMAT

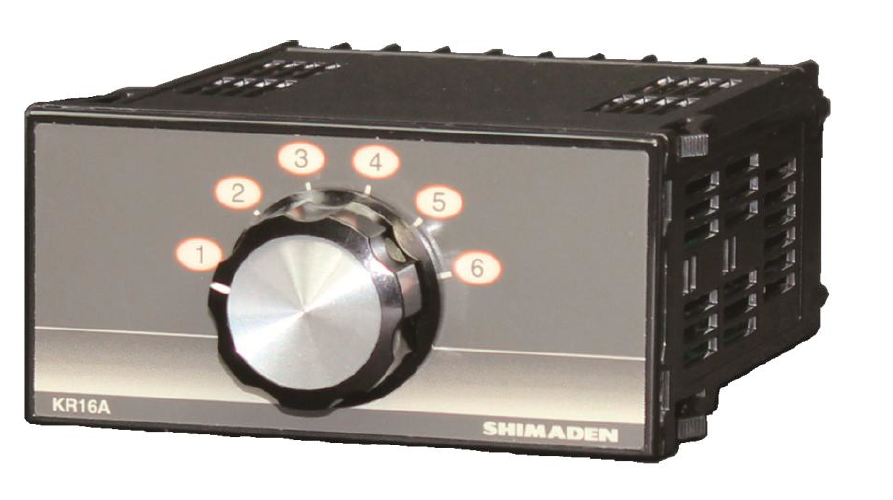

Or View Below for Essential Data   KR16 High Res Photo
