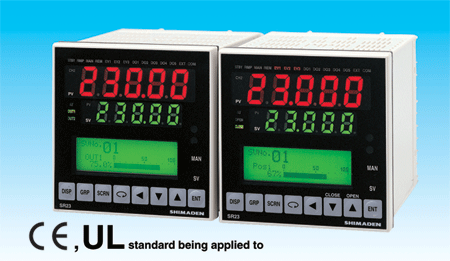

Shimaden SR23 - High Accuracy Controller

2-channel controller (Basic type: 1-channel controller)
Independent 2-loop / Internal Cascade / 2-input operation control
High accuracy ± (0.1% FS + 1 digit)
High Sampling Cycle 0.1 sec.
High resolution 1/ 1000 °C display achieved
*Only for R.T.D. input (scale: 0.000~30.000 °C)
Auto-Tuning PID / Expert PID / Self-Tuning PID
Multi-Setting of 10 Set Values
Independent Universal-Input
User Friendly Operation (Menu Driven: 4 Lines LCD Display)
Easy Setting & Maintenance via Infrared COM port on the front panel
Interface RS-232C/RS-485 (MODBUS / Shimaden)
The front dust/splash-proof IP66
Universal Power Supply (100~240V AC ±10%)
Sensor power supply
